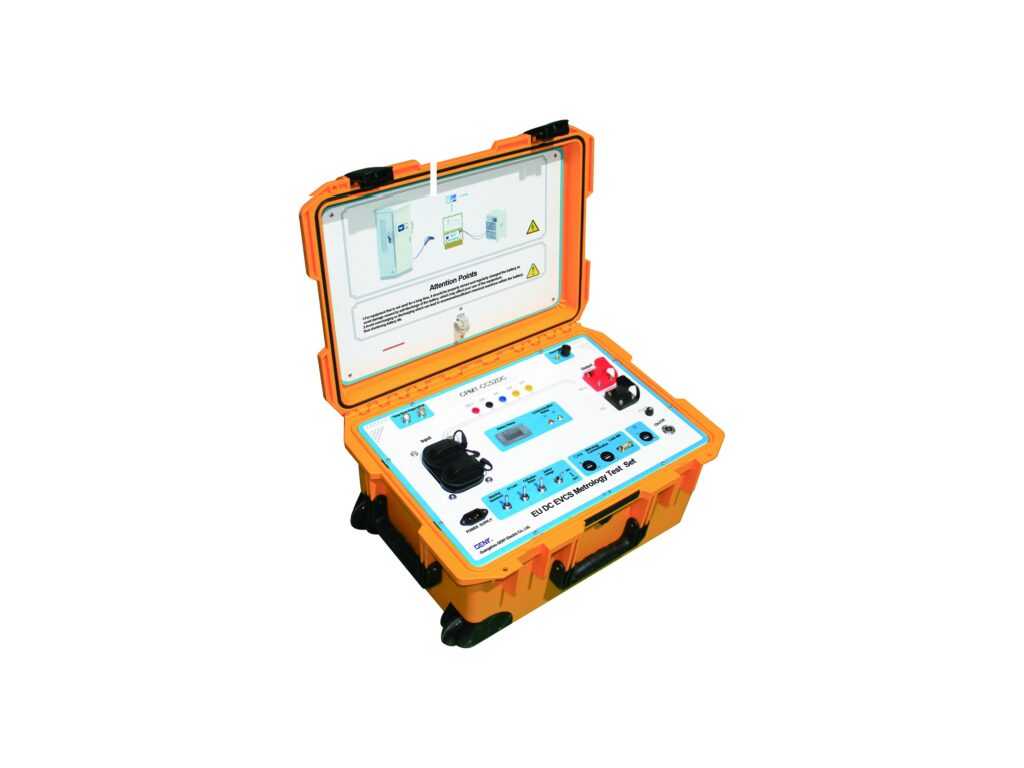

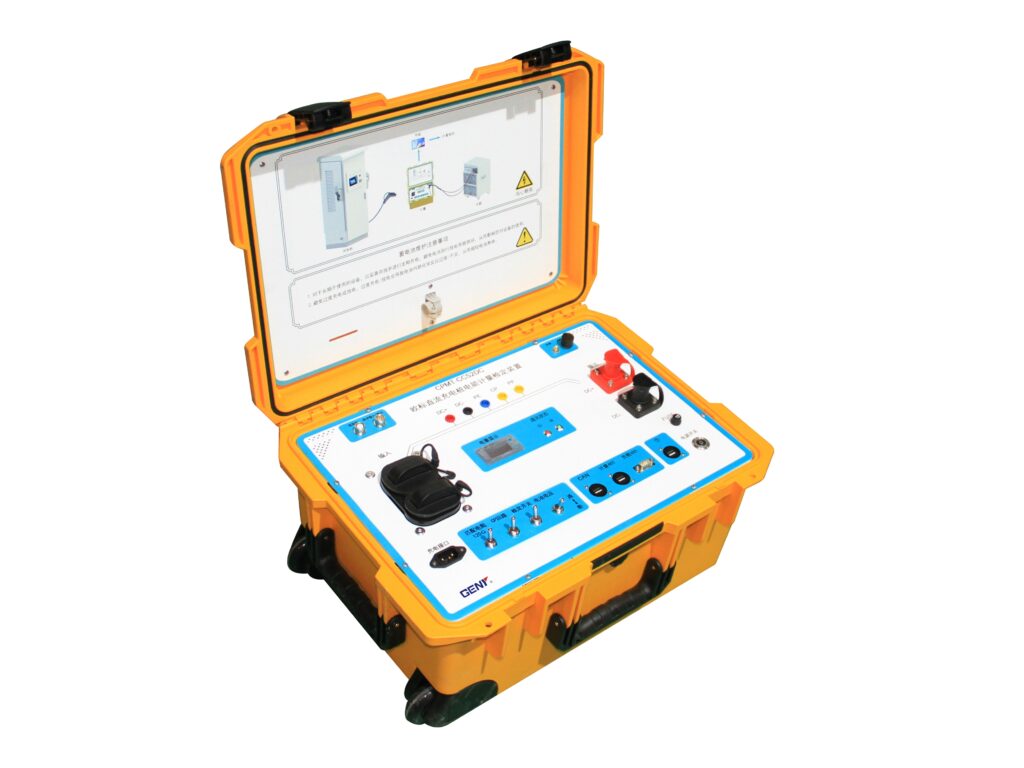

CPMT-CCS2DC Portable DC EVCS Metrology Tester
CPMT-CCS2DC is a portable DC EVCS metrology tester with multi-standard compatibility, high-precision energy measurement, BMS simulation, and power quality analysis, designed for comprehensive verification of DC charging piles.
Metrology-Grade CCS2 DC EVCS Tester with Traceable Pulse Diagnostics
Integrated BMS and 1500V Battery Simulation for Dynamic Load Testing
GPS-Synced Ripple Power Quality Analytics Backed by 39-Year GENY Mastery
basic param
| Accuracy Class | 0.05 |
| Voltage Range | DC 0~1500V, ±0.05%RD |
| Current Range | DC 0~600A, ±0.05%RD |
- Integrated high-precision DC energy module, traceable to the source via pulse method and standard meter method
- Built-in vehicle BMS simulation unit that interacts with charging piles to initiate charging and set voltage/current
- Built-in 0~1500V battery voltage simulator to meet different test voltage requirements
- Supports clock error test via GPS/BD clock acquisition module
- Capable of DC power quality verification by collecting voltage and current ripple parameters
- Offers WiFi and RS485 communication for APP automatic verification and load control
- Built-in environmental sensor for temperature, humidity and atmospheric pressure measurement at test site
- Supports report export and complies with JJG 1149-2022 verification requirements
