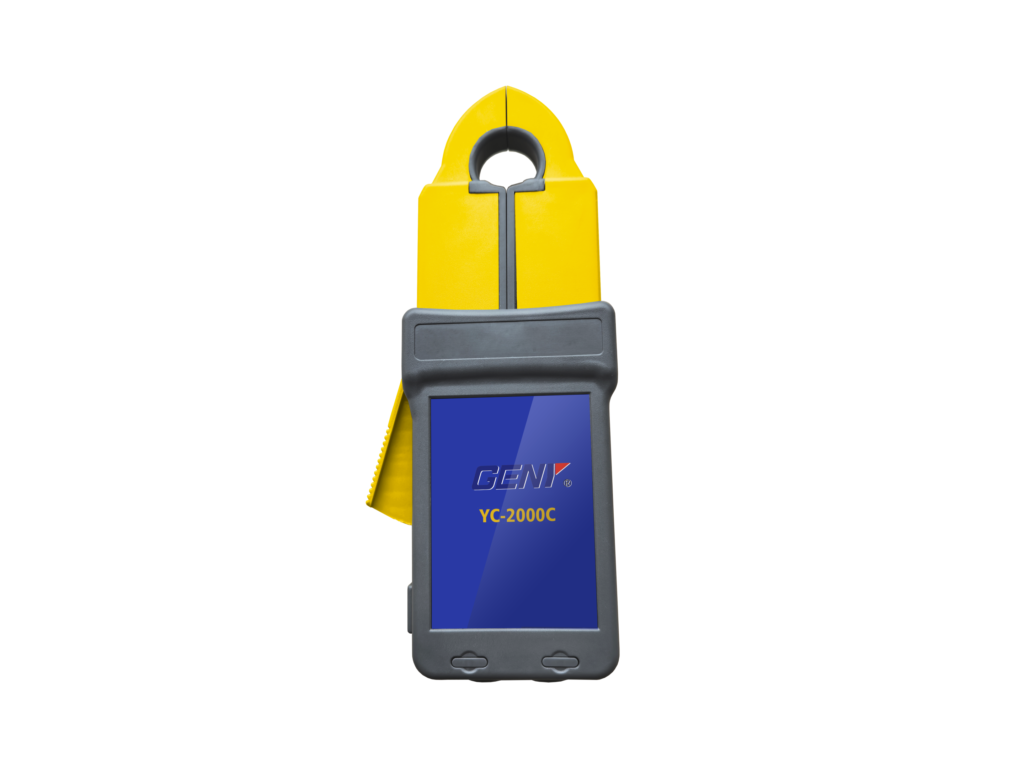

YC-2000C Portable Single Phase Standard Meter
Lightweight integrated single-phase standard meter with built-in current clamp, compact design and full parameter on-screen display.
Portable Single-Phase On-site Meter Calibration
Compact Handheld Design
Application Conditions and Requirements
| Operation Temperature | -10℃-55℃ |
| Relative Humidity | 5%-95% |
| Altitude | <2500m |
| IP Class | 40 |
| Conformity | IEC |
Test Voltage
| Range | 5~380V |
| Error | ±0.2%/±0.5 |
Test Current
| Range (Clamp-on CT) | 100A |
| Error (Clamp-on CT) | ±0.2%/±0.5 |
| Harmonics | 1st - 31st |
Power/Energy Measurement Error
| Active (Clamp-on CT) | ±0.2%/±0.5% |
| Reactive (Clamp-on CT) | ±0.5%/±1.0% |
Phase Angle
| Range | 0°~ 360° |
| Error | <±0.05° |
Frequency
| Range | 45 ~ 65Hz |
| Error | ±0.005Hz |
Pulse Output
| High Frequency | 3.6×108 imp/kW.h |
| Low Frequency | 7200 imp/kW.h |
| Pulse ratio | 1:1 |
| Output level | 4.5~5.5V |
Pulse Input
| Input Level | DC 4.5~12V |
| Input Frequency | Max. 10kHz |
Others
| Power Supply | Battery |
| Display | Colorful touch screen |
| Data Storage | 999 sets |
| Dimension | 195mm✕80mm✕35mm |
| Weight | 0.4KG |
- On-site error measurement of single phase electricity meter
- Integration design of meter and current clamp
- One Li-battery can work 8 hours continuously
- Manual/automatic test
- Colorful touch screen
- Display all the measuring parameters in one screen
- Current clamp has automatic calibration function
- Automatic store testing data
- Integrated Bluetooth module
- Light weight and small size
