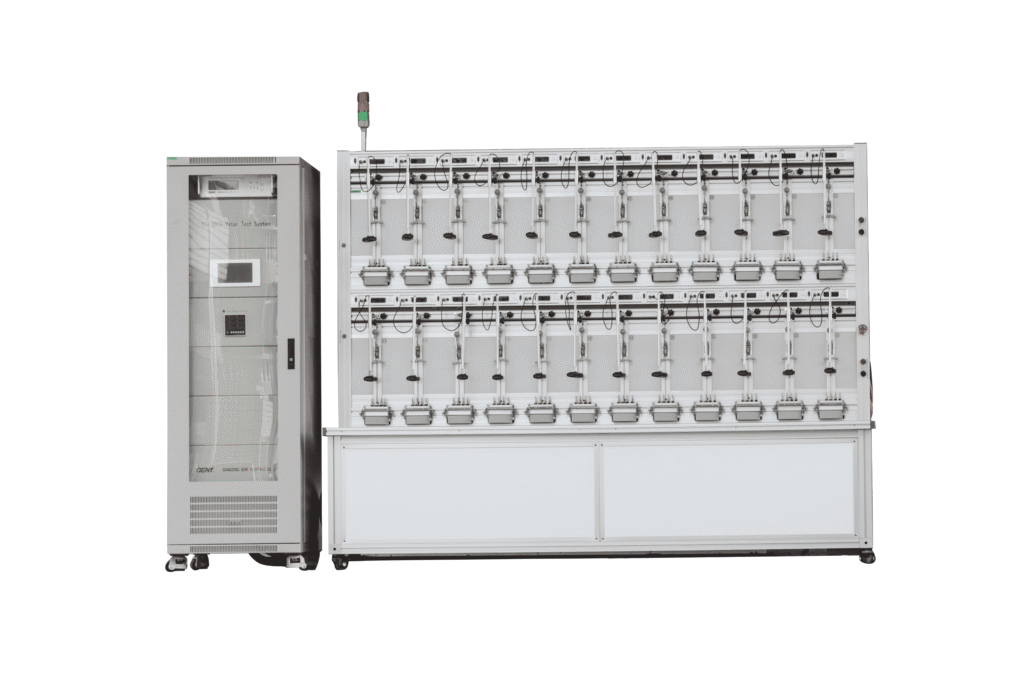

YC-1891D Single Phase Meter Test System
This high-precision energy meter test system (0.03/0.05/0.1 class) features wide output range, 51st harmonic output, full protection functions and automatic testing, suitable for all single-phase meters and compliant with IEC60736 & CE standards.
High-Accuracy Automated Calibration with Closed I-P Link Support
Flexible Multi-Mode Verification with Advanced Harmonic Simulation
Robust Operational Protection and Versatile Software Data Management
baisc param
| Accuracy | 0.03, 0.05, 0.1 |
| Voltage Range | up to 480V |
| Current Range | up to 200A |
- Meters under testing: 1P2W
- Testing mode: active power, reactive power; With MSVT, can test single-phase meters with closed I-P links
- With current output switch, can calibrate 2-element meters (optional)
- Equipped with RS232 and Ethernet ports for automatic calibration of electronic meters (optional)
- Supports testing of mechanical, electromechanical and electronic meters in automatic, semi-automatic or manual mode
- Aluminum alloy structure, lightweight, high strength and corrosion resistant
- Automatic rotor mark positioning for mechanical meters, high efficiency
- Synchronized scanning head movement for simplified control
- Supports starting test and creeping test
- Measures different meter constants synchronously
- Built-in overload, voltage short circuit and current open circuit protection
- User-friendly Windows 10/XP testing software with error test, harmonic test, demand test, influence test, etc.
- Stored test data can be exported in multiple formats for other applications
- System complies with EU health & safety standards and holds CE certification
- High Accuracy: 0.03, 0.05 or 0.1 class available
- Wide Output Range: Voltage up to 480V, Current up to 200A
- Designed and manufactured in accordance with IEC60736 standard
- Adjustable harmonic output up to the 51st order
- Compatible with all types of single-phase energy meters
- Automatic creeping test, starting test, dial test and error measurement
- Supports manual keyboard operation and PC software automatic calibration
