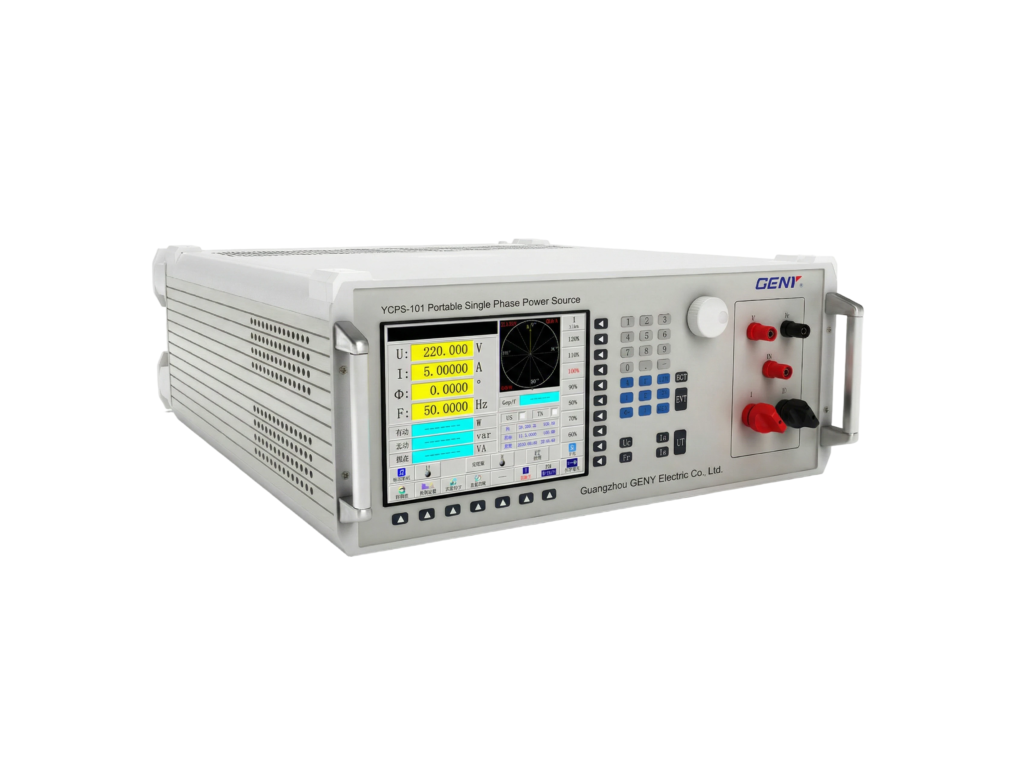

YCPS-101 Portable Single Phase Power Source
YCPS-101 is a high-precision portable single-phase standard power source, designed for calibration and testing of various single-phase energy meters, voltmeters, ammeters, transducers and instrument transformers.
High-Precision Single-Phase Standard Power Source
Comprehensive Electrical & Harmonic Output
Lab & Field Applicable with Multi-Meter Support
basic param
| Basic Accuracy | 0.05 class |
| AC Voltage Range | 57.7V~600V |
| AC Current Range | 0.05A~100A |
| Harmonic Output | 2~51 orders |
| Frequency Range | 40Hz~70Hz |
- High-precision portable single phase standard power source for electrical meters calibration
- Outputs adjustable amplitude, phase, frequency and stable power standard signals
- Supports 2~51 times harmonic output with independent setting of harmonic order, content and phase
- Adopts hardware and software dual closed-loop control for high output accuracy and stability
- Comes with large color LCD, supporting touch screen and physical key operation
- Built-in 3-channel energy pulse input and output for simultaneous calibration of 3 single-phase energy meters
- Supports energy meter running test, active/reactive/apparent energy testing
- Strong capacitive load driving capability adapts to various load types
- Equipped with RS232 and RS485 interfaces for upper computer control and secondary development
- Supports external foot switch for one-click start-stop of output signal
- Automatic protection and alarm against voltage short circuit, current open circuit and wrong wiring
- Compact structure, light weight, suitable for laboratory and field on-site use
