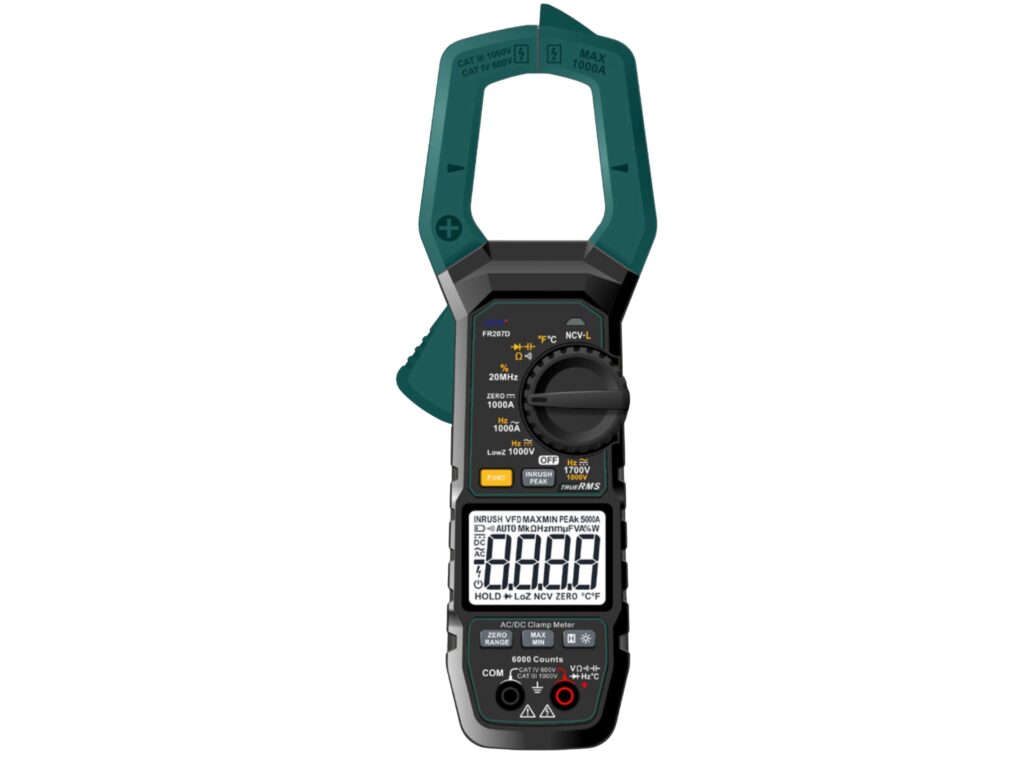

FR207 Series Clamp Digital Multimeter
FR207 Series Clamp Digital Multimeter features True RMS 6000 counts, 1000A/1000V AC/DC measurement, full practical functions and overload protection for safe daily testing.
1700V Ultra-High Voltage True RMS Current Sensing for Solar Utilities
Advanced LowZ Meter Diagnostics with Anti-Interference NCV Tracking
Field-Rugged 42mm Large Jaw Design Backed by 39-Year GENY Mastery
basic param
| Maximum AC/DC Current | 1000A |
| Maximum AC Voltage | 1000V |
| Maximum DC voltage | 1000V(C)/1700V(D) |
| Frequency | 10MHz(C)/20MHz(D) |
- True RMS measurement with 6000 counts display.
- Auto range and 15-minute auto power off.
- AC/DC current up to 1000A, AC voltage up to 1000V.
- DC voltage: 1000V(C)/1700V(D).
- Resistance up to 60MΩ, capacitance up to 60mF.
- Frequency: 10MHz(C)/20MHz(D).
- NCV & LIVE detection with LED alert.
- Supports diode test, buzzer continuity and LowZ measurement.
- 42mm jaw opening with anti-slip design.
- Peak, zero, max/min and data hold functions.
- Built-in overload protection for safe operation.
