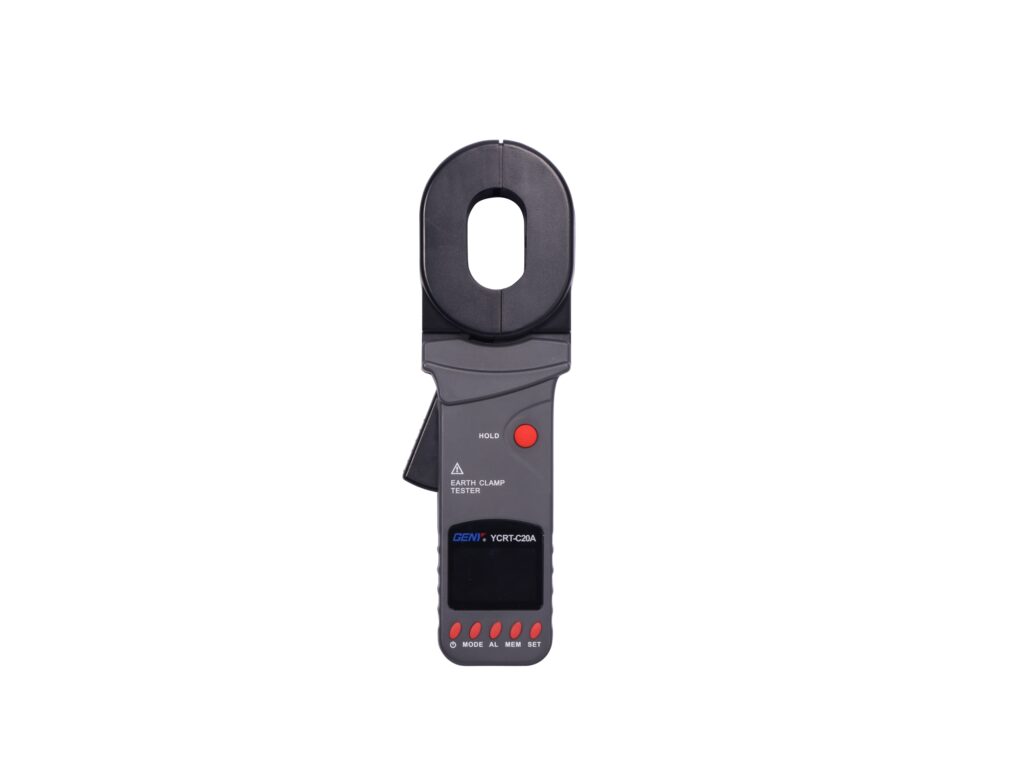

YCRT-C20A Clamp Ground Resistance Tester
YCRT-C20A Clamp Ground Resistance Tester is a portable clamp-type instrument that simultaneously measures grounding resistance and loop current without needing auxiliary grounding rods.
Metrology-Grade Ground Loop Resistance Clamp with Simultaneous Current Display
Rod-Free Mutual Induction Technology with Intelligent NOISE Immunity
Field-Rugged 1180g Shockproof Casing Backed by 39-Year GENY Mastery
basic param
| Resistance Range | 0.01Ω ~ 1200Ω |
| Current Range | 0.00mA ~ 20A |
| Resistance Resolution | 0.001Ω |
| Current Resolution | 0.01mA |
- Integrated test for grounding resistance and loop current simultaneous display
- Resistance Measurement Range: 0.01Ω ~ 1200Ω, Current Measurement Range: 0.00mA ~ 20A
- Resistance Resolution: 0.001Ω, Current Resolution: 0.01mA
- Adopts mutual induction measurement principle without auxiliary grounding rod
- Built-in 300 groups data storage, support data review and deletion
- Supports data hold and automatic alarm function over threshold
- Automatic identification and prompt of interference signal with NOISE indication
- 5 minutes automatic shutdown with low battery reminder function
- 4-digit LCD black screen clear display, easy operation with full keys
- Clamp jaw size: 55mm×32mm for convenient wire clamping
- Shockproof, dustproof and moisture-proof portable structure
- Light weight 1180g, suitable for field outdoor measurement
