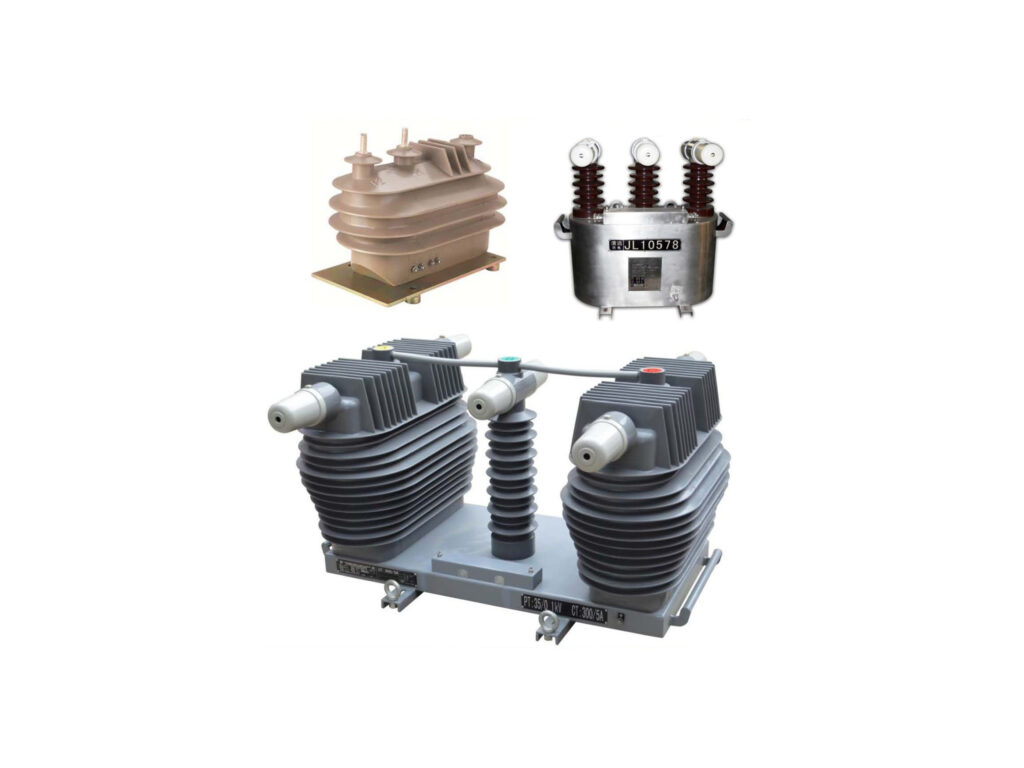

SH series Combine Transformer
SH series Combine Transformer integrates voltage and current conversion in one unit, featuring low loss, low noise, sealed structure and stable operation for power system measurement and protection.
Integrated CT/VT Space-Saving Substation Solution
Premium Materials with High Energy-Saving Efficiency
Fully Sealed All-Weather Structure for Severe Environments
| Rated Voltage: : Low no-load loss and load loss High insulation strength and mechanical stability | 6kV ~ 35kV |
| Rated Capacity | 30kVA ~ 2500kVA |
| Impedance Voltage | 0.4% ~ 5.0% |
- Integrated design integrates voltage and current transformation functions into one compact unit
- Adopts high-quality silicon steel sheet and oxygen-free copper winding materials
- Low no-load loss and low load loss with obvious energy-saving effect
- Low noise performance and compact overall structure layout
- Adopts fully sealed anti-corrosion and moisture-proof structure design
- Strong overload capacity and stable long-term operating performance
- Small installation footprint, easy for field arrangement and installation
- Suitable for indoor and outdoor power distribution and industrial power systems
