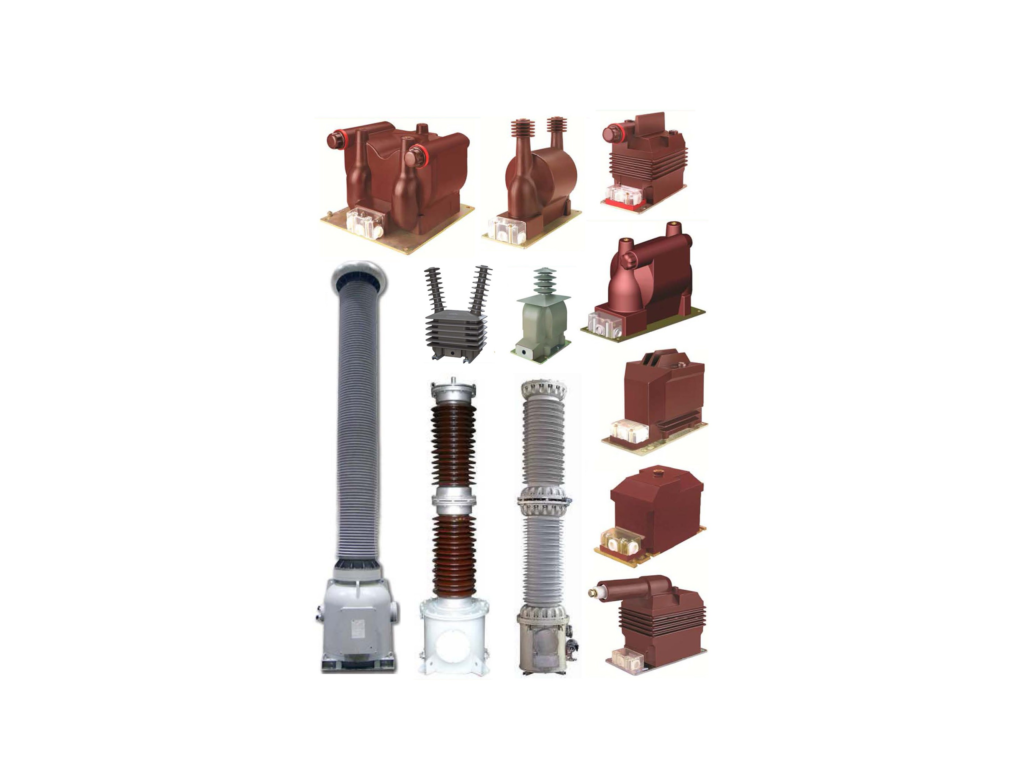

SH series Voltage Transformer
SH series Voltage Transformer provides stable high-precision voltage conversion with low loss and strong overvoltage resistance for power system operation and measurement.
High-Accuracy Grid Metering with Minimal Core Loss
Robust Overvoltage and Lightning Impulse Resilience
Space-Saving Compact Design for Flexible Installation
basic param
| Rated Voltage | 6kV ~ 35kV |
| No-load Loss: | 130W ~ 16400W |
| No-load Current | 0.4% ~ 2.0% |
- Optimized magnetic circuit design with low no-load loss and low no-load current
- Stable voltage output and high transformation accuracy
- Strong overvoltage and lightning impulse withstand capability
- Compact size, small occupation and convenient installation
- Good structural stability and long service life
- Complete internal protection structure for safe operation
- Multiple voltage level specifications to match power system needs
- Widely used in grid metering, monitoring and protection
