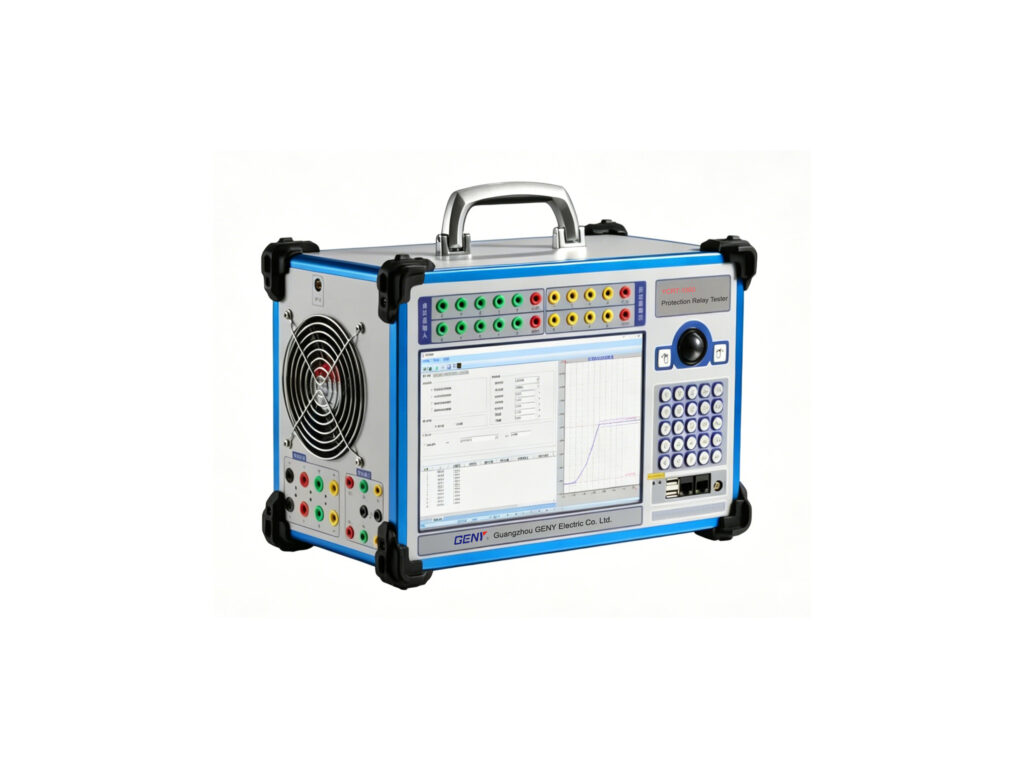

YCRT-1000 Protection Relay Tester
Compact lightweight relay protection tester with comprehensive AC/DC testing functions, high-resolution touch screen and isolated multi-channel input & output terminals.
Comprehensive AC And DC Protection Relay Testing
Rich Test Functions And Isolated Multi Channel Terminals
High Resolution Touch Screen And Lightweight Compact Design
basic param
- Powerful functions: AC/DC test, state sequence, harmonic, Diff-protection, Fault recurrence, group test, Line protection, Power direct, Hi-low frequency, Impendence & I-t Characteristic, power Oscillation.
- TFT 10.1-inch LCD display, default resolution of 1280*800.
- Switching input terminals: every 5 channels share one common terminal as one group, with two groups mutually isolated.
- Switching output terminals: dry contact output with 8 independent pairs.
- Dimensions: 370mm×280mm×180mm, Weight: 11kg.
