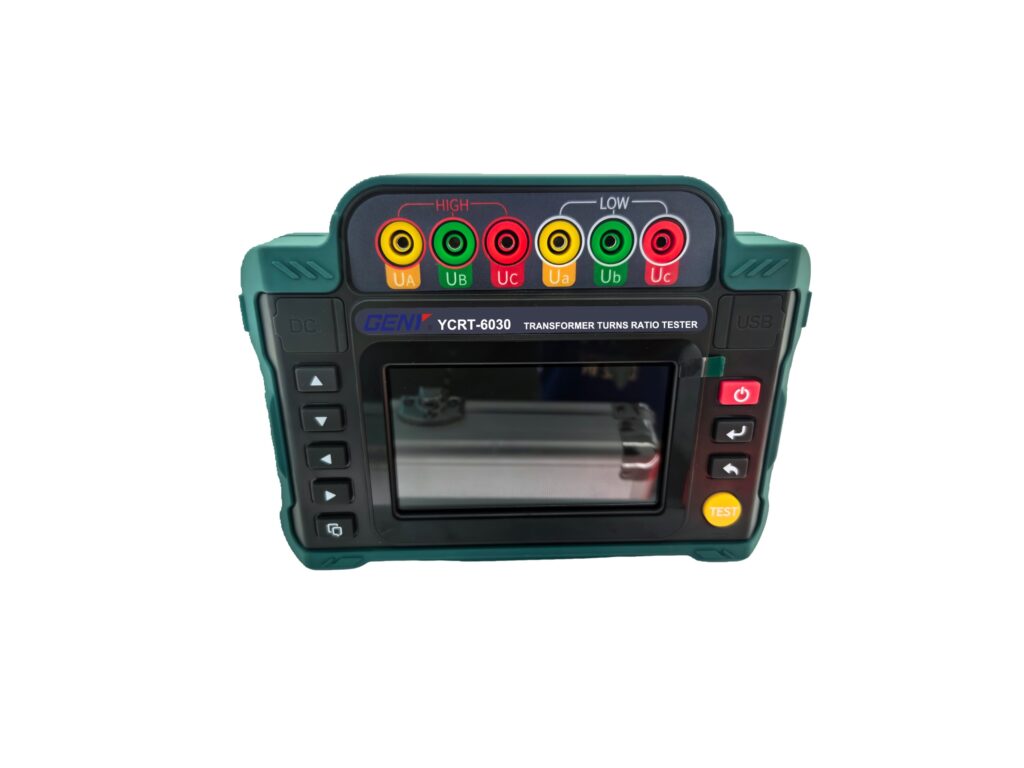

YCRT-6030 Transformer Turns Ratio Tester
YCRT-6030 is a portable microprocessor-based transformer turns ratio tester that supports multiple transformer types ratio and group testing, with touch screen operation, Bluetooth/USB communication and built-in rechargeable lithium battery.
High Precision Measurement For Transformer Turns Ratio
Wide Compatibility, Dual Operation And Rich Communication Functions
Lightweight Portable Design With Data Storage And Overload Protection
basic param
| Turns Ratio Range | 0.9~10000 |
| Battery Specification | DC9.6V 3800mAh |
| Data Storage | 500 groups |
| Instrument Overall Dimension | 229mm×166mm×74mm |
| Net Weight (with battery) | 1.5kg |
- Adopts microprocessor technology for measurement calculation and automatic control
- Quickly and accurately measure actual transformer turns ratio and vector group
- Supports testing for single-phase transformer, three-phase transformer, Z-type transformer, PT and CT
- Realizes blind testing function for three-phase transformers
- Built-in DC9.6V high capacity 3800mAh lithium battery with charging function and low battery real-time display
- Equipped with 5 inch 854×480 full color LCD touch screen, supports touch screen and button dual operation mode
- Supports Bluetooth connection with mobile APP and USB connection with computer host
- Built-in 500 groups data storage capacity with data access function
- Auto power off time adjustable from 1 to 30 minutes
- Comes with overload protection function for safe operation
- Lightweight design, instrument weight 1.5kg including battery, easy portable use
