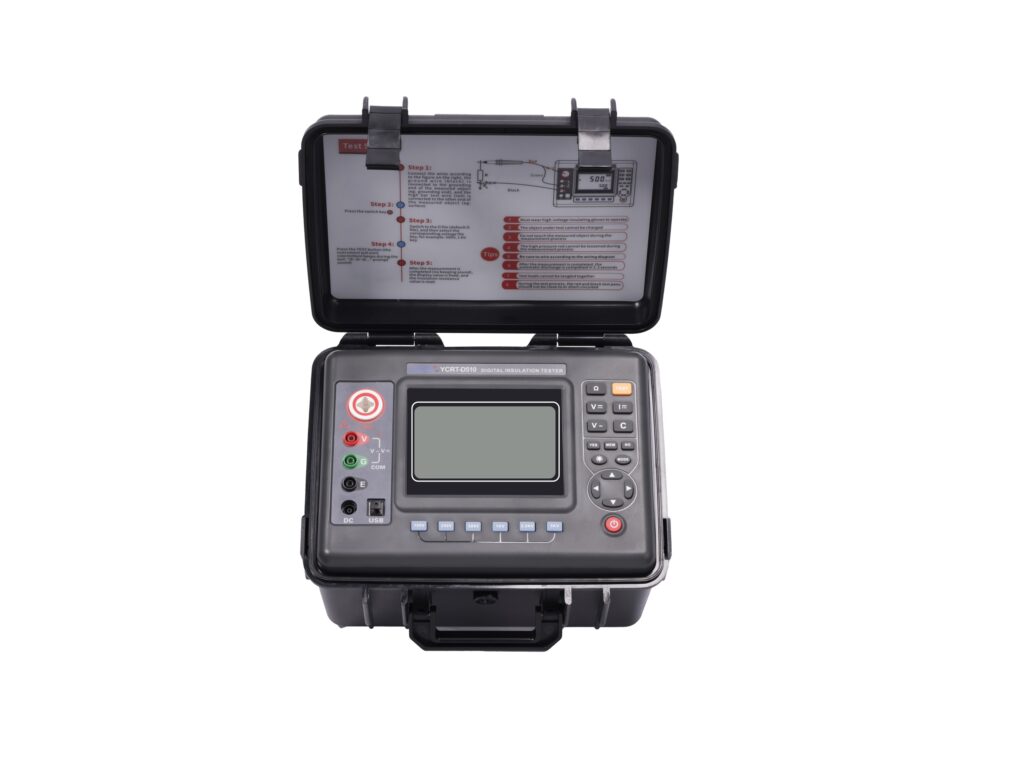

YCRT-D510 Digital Insulation Resistance Meter
This digital insulation resistance meter supports insulation resistance, voltage, DC current and capacitance tests as well as absorption ratio and polarization index measurement, featuring rapid testing, adjustable alarm thresholds, USB data transmission.
Industrial Metrology-Grade Megohmmeter for High-Voltage Cable Insulation
Automated PI and DAR Diagnostics with Full IEC 61557 Compliance
Field-Rugged Backlit Architecture with Seamless USB Telemetry Logging
basic param
- Function: Insulation resistance test, voltage test, DC current test, capacitance test; Absorption Ratio and Polarization Index Measurement.
- Rapid measurement with optimized efficiency.
- With USB interface, software monitoring, storage data can be uploaded to the computer, save and print.
- Alarm when the measured value larger or smaller than the alarm setting value.
- 4-bit large LCD (108mm×65mm) display with controllable gray backlight for low-light use.
- Instrument size: L/W/H: 240mm×188mm×85mm; Weight: 2750g (with battery).
- Suitable for Safety Regulations: IEC61010-1, IEC1010-2-31, IEC61557-1&5, IEC60529(IP54), pollution grade 2, CAT III 300V.
