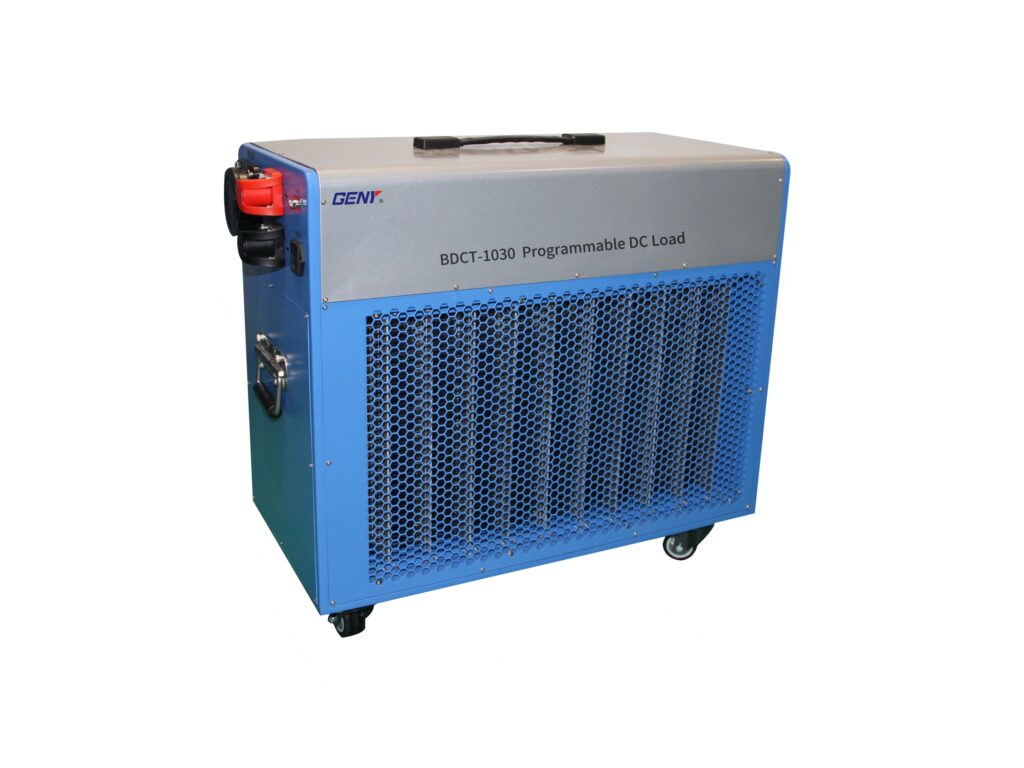

BDCT-1030 Programmable DC Load
The BDCT-1030 is a high-power-density portable DC electronic load built for rigorous power utility testing. It supports flexible multi-unit parallel scaling and advanced safety logic—including automatic fan-failure loading shutdown and overvoltage protection—to deliver verified, audit-ready data logs backed by GENY's 39-year mastery.
1000V High-Precision DC Load for Automated EVCS Diagnostics
Full EV Battery Process Simulation with 250A Heavy-Duty Connector Hubs
Scalable RS485 Parallel Telemetry Control Backed by 39-Year GENY Mastery
basic param
- The load features a high power density portable design with mobile rollers for laboratory use and field test use.
- The local control button of the load and the RS-485 communication interface with remote control software enable remote control functionality.
- The load comes with a 250A charging gun holder and a quick parallel plug.
- The load is equipped with voltage and current measurement capabilities and has the ability to simulate the entire charging process of various electric vehicle power batteries.
- 1000V loading current range: 5A, 5A, 10A, 10A 750V loading current range: 5A, 5A, 10A, 10A 500V loading range: 5A, 5A, 5A, 5A, 5A, 5A, 10A, 10A.
- With safety alarm function and automatic protection function, the discharge load will automatically stop loading in case of cooling fan failure.
- The load has functions such as maximum load power protection and overvoltage protection.
- Multiple units can be used in parallel.
