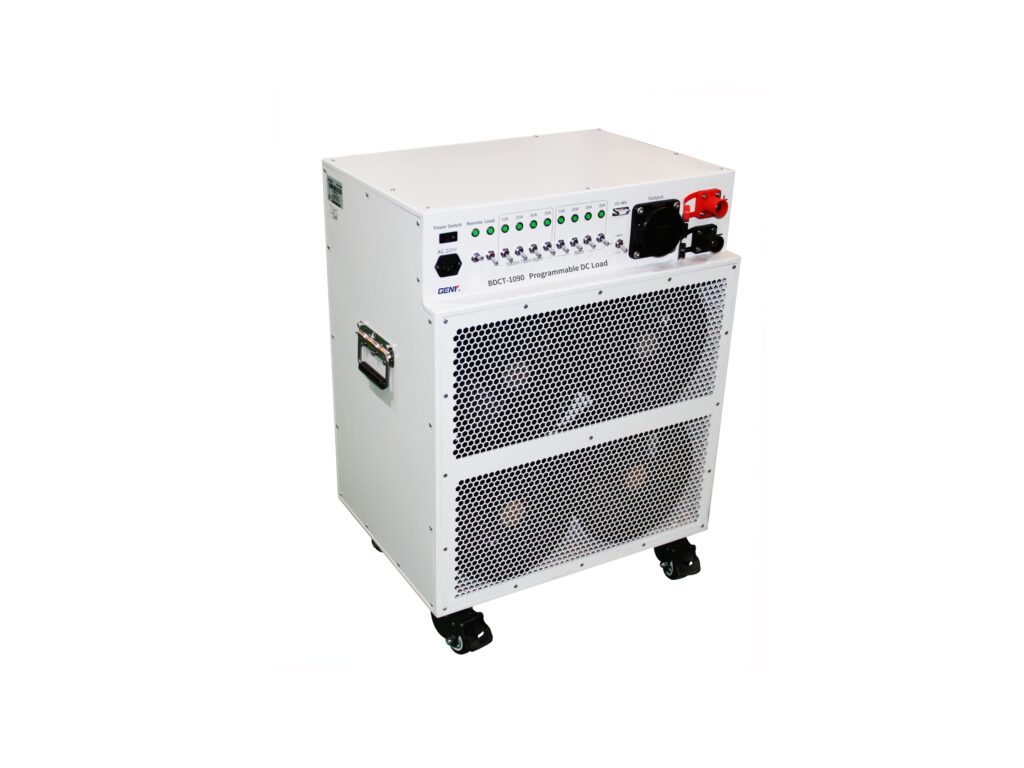

BDCT-1090 Programmable DC Load
The BDCT-1090 is a high-power-density portable DC electronic load tailored for laboratory and field deployment. It supports constant current/resistance/power modes up to 1000V, allowing seamless multi-unit parallel operations via RS485 communication to streamline full-process diagnostic analysis for electric vehicle power batteries.
1000V High-Power Density DC Load for Automated EVCS Diagnostics
Full EV Battery Process Simulation with 250A Heavy-Duty Charging Connectors
Scalable RS485 Parallel Telemetry Control Backed by 39-Year GENY Mastery
basic param
- High power density portable design for laboratory use and field test use.
- Built with local control buttons and RS-485 communication interface, supporting remote control via dedicated software.
- The load is equipped with a 250A charging gun holder and a 200A parallel quick plug.
- The load is equipped with voltage and current measurement capabilities and has the ability to simulate the entire charging process of various electric vehicle power batteries.
- It has constant current, constant resistance and constant power loading functions.
- The device is equipped with 1000V/750V/500V: 10A, 20A, 30A, 30A, 500V: 10A, 20A, 30A, 30A control Settings, with maximum power: 1000V/750V 90A, 500V 180A.
- The device is equipped with a voltage range selector switch to select the load voltage according to the voltage level of the charging pile under test.
- With safety alarm function and automatic protection function, the discharge load will automatically stop loading in case of cooling fan failure.
- The load has functions such as maximum load power protection and overvoltage protection.
- Multiple units can be operated in parallel manually and remotely.
