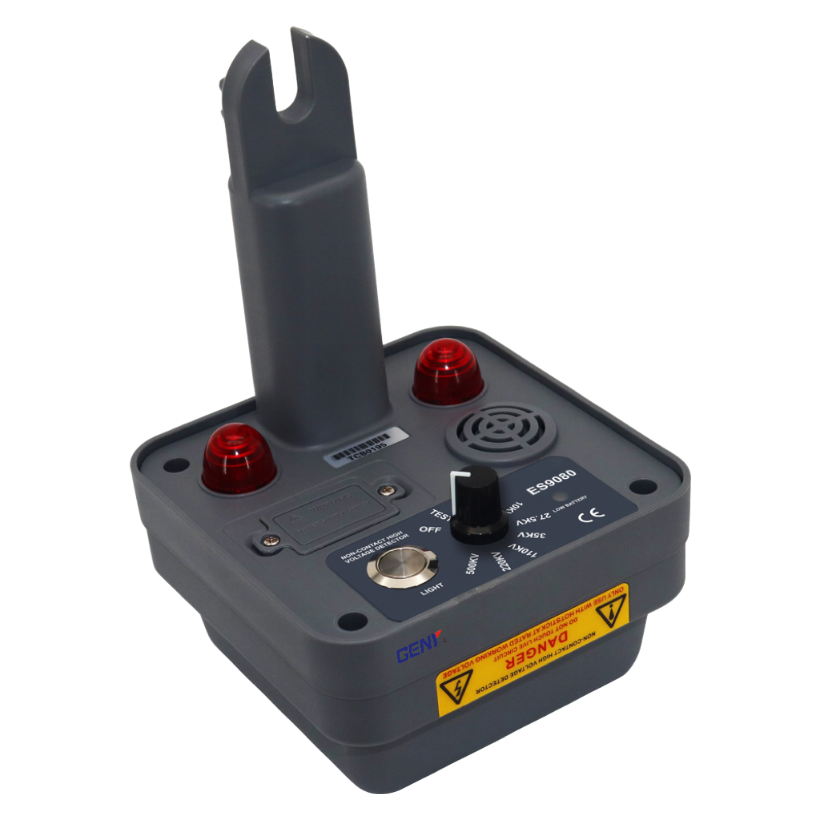

YCVD-9080 Non-contact High Voltage Detector
YCVD-9080 Non-contact High Voltage Detector is a portable IP65 rated non-contact tester for live voltage checking, cable tracking and residual voltage detection from 380V to 550kV.
550kV Ultra-High Voltage Non-Contact Diagnostics for Grid Utilities
IP65 Weatherproof and Shockproof Architecture for Harsh Substation Operations
Insulating Rod Compatibility Backed by 39-Year GENY Field Mastery
basic param
| Voltage Range | 380V–550kV |
| Rated Voltage Gear | 380V/6kV/10kV/27.5kV/35kV/110kV/220kV/500kV |
| Working Power | DC 9V |
| Operating Temperature | -10℃ ~ +50℃ |
- Supports non-contact AC high voltage detection and cable tracing function
- Covers 8 voltage levels from 380V up to 550kV
- Adopts manual gear shifting for different voltage ranges
- Built-in sound and light alarm prompt when detecting live voltage
- IP65 protection grade and shockproof structure for harsh outdoor environment
- Equipped with low battery indicator for timely battery replacement
- Compatible with standard insulating rod for safe field operation
- Lightweight portable design with net weight only 365g
- Wide reminding detection distance up to about 20cm
- Supports self-check function after power-on
- Strong anti-interference and stable detection performance
- Compact size 115×115×169mm for easy carrying
