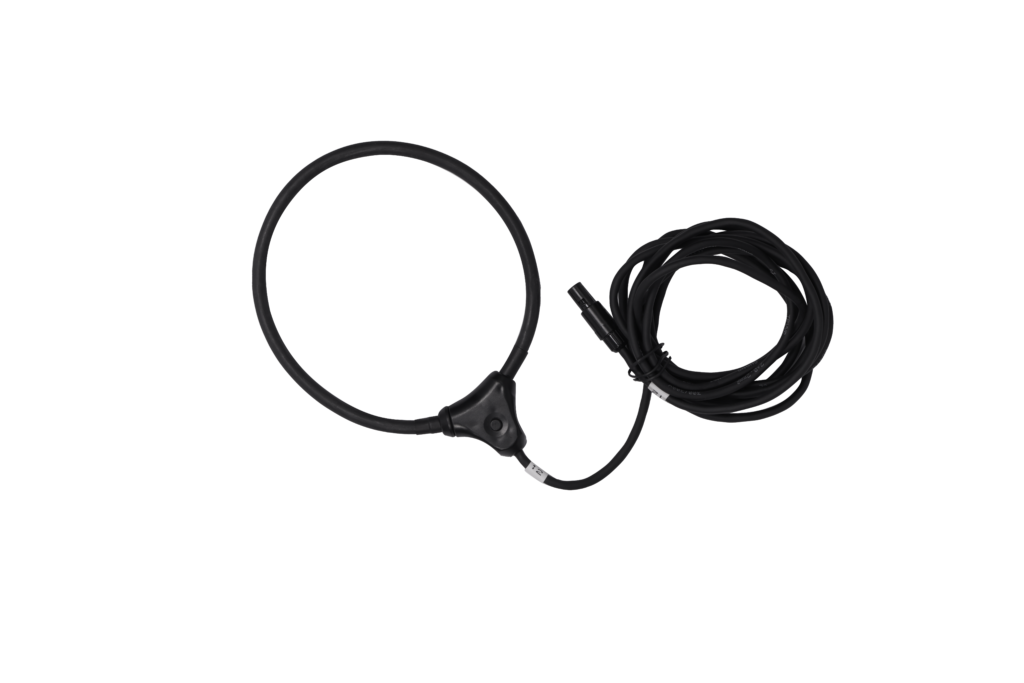

GN-C Series Rogowski coil
Flexible Rogowski coil with multiple current ranges, featuring custom inner diameter, high accuracy and non-invasive current measurement for narrow space applications.
3000A Metrology-Grade Flexible Rogowski Coil with ≤0.5% Accuracy
Customizable 100mm-180mm Dimensions for Tight Busbar Infrastructure
Wide Harmonic Frequency Range Backed by 39-Year GENY Mastery
basic param
| Current Range | 1000A, 2000A, 3000A |
| Customizable Size | Inner diameter customizable from 100mm to 180mm |
- Options: 1000A, 2000A, 3000A
- Flexible Design: Conforms to tight spaces; Easy to wrap around conductors.
- Customizable Size: Inner diameter customizable from 100mm to 180mm.
- High Accuracy: the error≤0.5% at the upper half position of the coil.
- Wide Frequency Range: Accurate response from power frequency to high-frequency harmonics.
- Non-Invasive Testing: Measures current without breaking the circuit.
