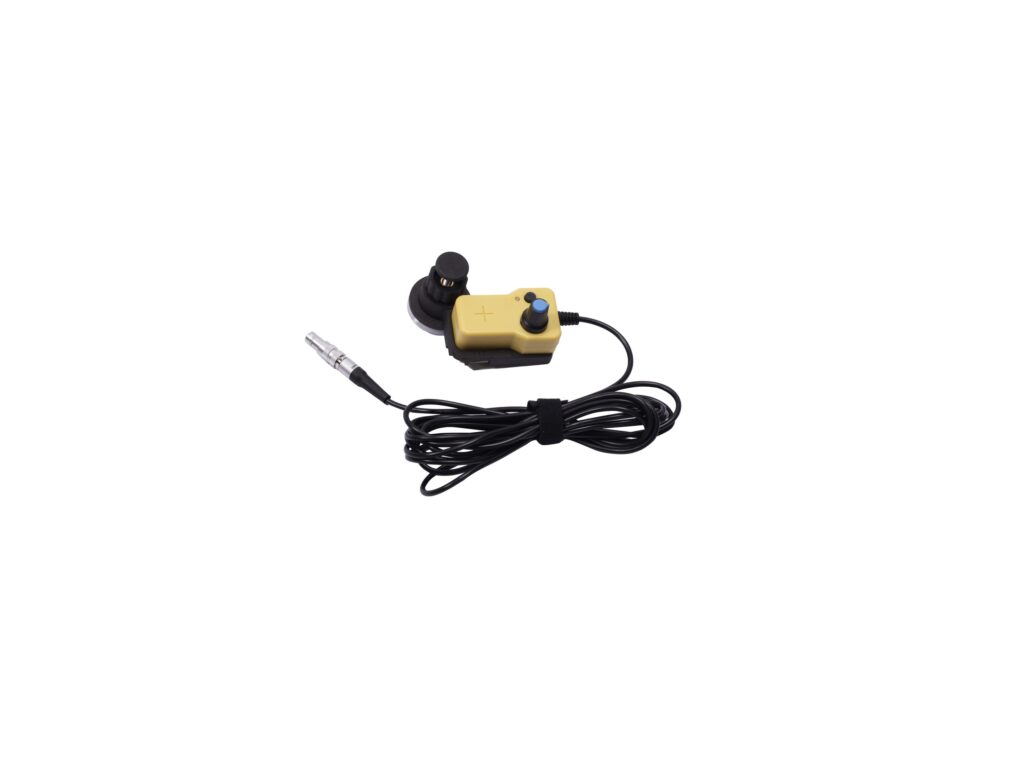

OPS series Scanning Head with Spring/Sucker Bracket
OPS series scanning head is a dual-purpose photoelectric sampler equipped with spring and sucker brackets, supporting automatic sampling for mechanical and electronic energy meters, featuring high anti-interference and easy field installation.
3kHz High-Speed Photoelectric Sampling Head for Precision Calibration
One-Key Dual-Mode Compatibility with Smart LED Status Indication
Stray Light Shielding Architecture with Spring and Sucker Mounting Options
basic param
| Working Voltage | 3~12VDC |
| Sampling Speed | up to 3kHz |
| Sampling Distance | 0~25mm |
| Sensing Wavelength | 400~1100nm |
| Protection Grade | IP54 |
- Dual mode design compatible with mechanical and electronic energy meters with one-key mode switching
- Built-in crosshair aiming for high-precision light alignment and positioning
- Dual-color LED indicator: red for mechanical meter mode, green for electronic meter mode
- Adjustable sensing sensitivity to adapt complex ambient light conditions
- High sampling speed up to 3kHz to meet various meter calibration requirements
- Supports matching with OPS-B spring bracket and OPS-C sucker bracket
- Applicable for round, square and bench type energy meters
- Special bracket structure shields strong ambient light and filters stray light interference
- Wide compatibility with all kinds of portable and bench meter calibrators
- IP54 protection grade, durable ABS housing material
- 3m standard connecting cable with customizable cable length
- Low working current ≤50mA, wide DC working voltage 3~12V
- Lightweight compact design easy for field carrying and installation
