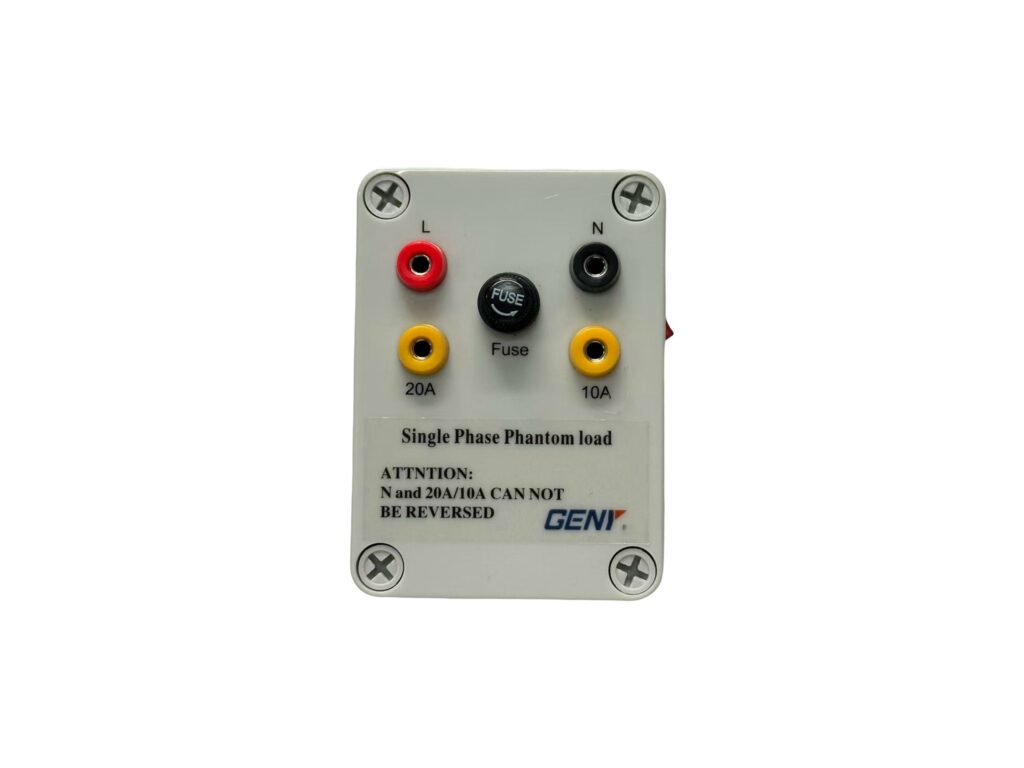

GN-VL01 / GN-VL03 Single/Three Phase Phantom Load
This phantom load is specially designed for low and zero load energy meter calibration, supporting specified voltage and current output with dedicated clamp usage, safety switch and high voltage insulation performance.
Metrology-Grade Phantom Load for Zero-User-Load Meter Calibration
Non-Invasive Combined Clamping for Interruption-Free Field Testing
2kV Industrial-Class High Voltage Insulation with Dedicated Safety Switch
basic param
| Current Output | 5A to 10A (single phase); 1A-5A output (three phase) |
| Voltage Range | 0-250 V |
- Designed for low or zero user load calibration.
- Voltage Range: Input voltage 0-250 V.
- Current Output: 5A to 10A (single phase); 1A-5A output (three phase).
- Clamp Usage: Clamp must isolate phantom load cable for zero load.
- Combined Clamping: Clamp both phantom and original cables for low load.
- Safety Switch: Switch positions for "Closed" and "Open" circuit.
- High Voltage Test: Withstands 2kV AC for 1 minute.
- Insulation Resistance: Voltage/current terminals to chassis insulation test.
