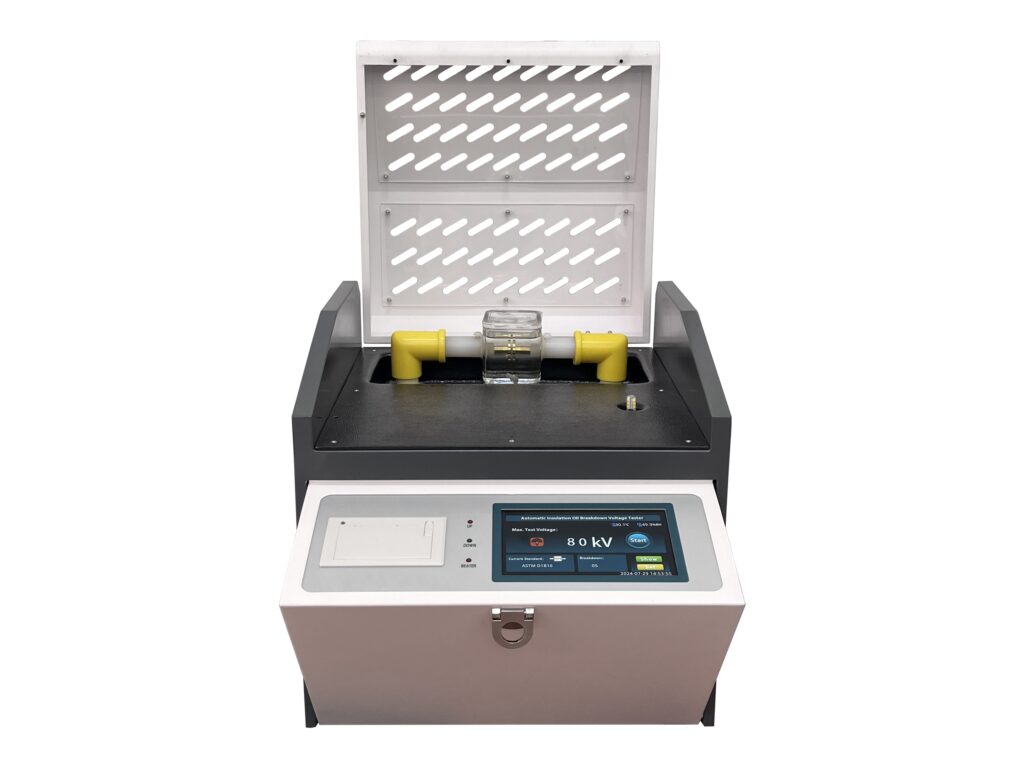

YC-100D Oil Breakdown Voltage Tester
YC-100D Oil Breakdown Voltage Tester is a full-automatic digital insulating oil BDV tester with multi-standard modes, high precision sampling, comprehensive protection and portable structure for oil dielectric strength detection.
High Precision Test For Insulating Oil Dielectric Strength
Intelligent Control, New Multiple Standards And Full Protection
Portable Structure With Direct Sampling, Data Display, Storage And Printing
basic param
| Output Voltage: | 0~100kV |
| Voltage Rise Rate | 0.5kV/s, 1kV/s, 2kV/s, 3kV/s, 5kV/s |
| Standard Electrode Gap | 2.5mm |
| Power Supply Aberration Rate | ＜1% |
- Adopts large capacity single-chip microcomputer control to ensure stable and reliable operation
- Built-in watchdog circuit effectively avoids instrument crash failure
- Supports IEC156, ASTM D877, ASTM D1816 and user custom test modes
- One-piece cast special glass oil cup prevents oil leakage and external interference
- High-voltage terminal sampling design minimizes analog circuit error for higher accuracy
- Equipped with overcurrent, overvoltage and short-circuit protection, strong anti-interference performance
- Portable integrated structure, easy to carry and suitable for indoor and outdoor use
- Large LCD Chinese display and built-in printer for real-time data display and output
- Standard 2.5mm electrode gap, compatible with multiple types of test electrodes
- Automatically stores up to 35 groups of test data with automatic overwrite storage
- Multiple adjustable voltage rise rates and customizable test parameters
