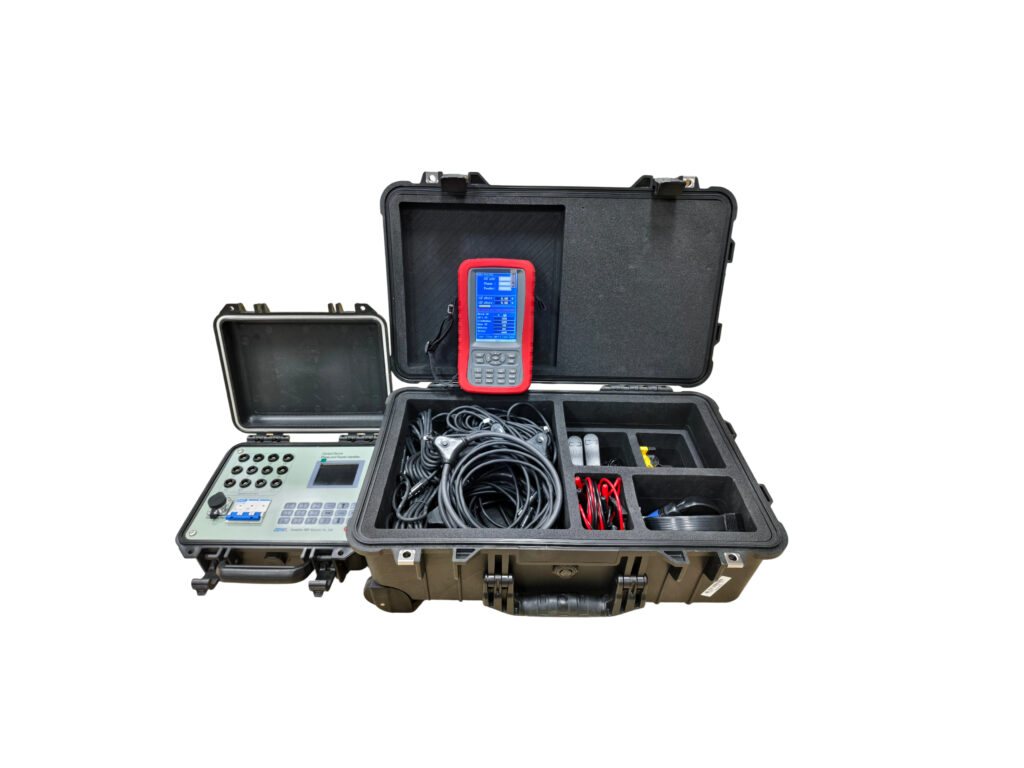

YCCI-9901-12(V8) Phase & Feeder Identifier
YCCI-9901-12(V8) Phase & Feeder Identifier is composed of CD and LD units, used for automatic identification of low-voltage user phase, feeder and affiliated transformer with harmonic, power parameter and waveform analysis functions.
High Accuracy For Phase And Feeder Identification
Comprehensive Power Parameter, Harmonic And Waveform Analysis
Strong Adaptability For Complex On-Site Working Conditions
basic param
| Working Voltage | 230Vac / 400Vac |
| Rogowski Coil Range | 600A |
| Supported Coil Quantity | Max 12 units |
| Feeder Test Radius | Up to 1.5km |
| Harmonic Test Range | 3~51 odd times |
- Consists of Central Device (CD) and Line Device (LD) two-part integrated structure
- Automatic identification of user phase, feeder and affiliated transformer information
- Supports manual feeder test for complex on-site working conditions
- 100% accurate identification for phase and transformer ID judgment
- Supports group feeder and phase working mode as well as cascading test
- Counts and analyzes transformer phase load and energy meter quantity
- Displays 3~51 times odd harmonics and total harmonic value
- Real-time voltage waveform display of tested network
- Matches up to 12 channels Rogowski coils up to 600A range
- Measures transformer secondary voltage, current, phase angle, active and reactive power
- Built-in power factor measurement and vectogram display function
- Free of direction and polarity limitation during clamp connection
- Supports custom CD ID setting for transformer distinction
- Dual power supply design with battery and circuit power, auto-off function
- Max test radius up to 1.5km for feeder detection
