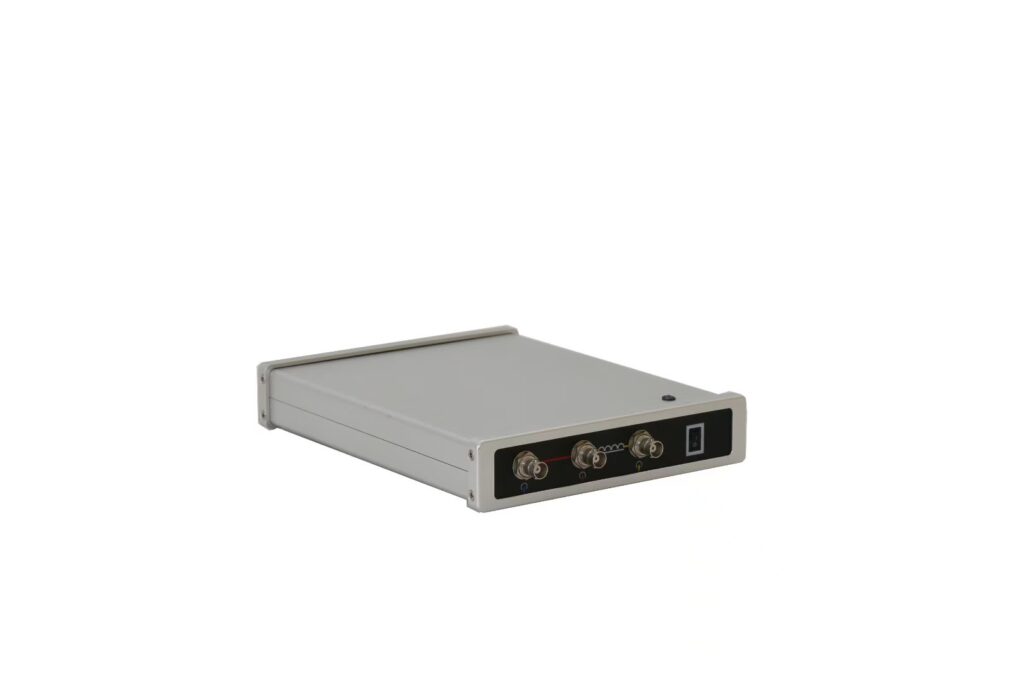

YC-SFR01 Sweep Frequency Response Analyzer
YC-SFR01 Sweep Frequency Response Analyzer is a portable high-precision device used to detect and diagnose power transformer winding deformation via frequency sweep response method.
High Precision Detection For Transformer Winding Deformation
Fast Testing Speed, Multiple Modes And Intelligent Diagnosis Compact
Portable Design With Complete Data And Report Functions
basic param
| Sweep Frequency Range | 10Hz ~ 30MHz |
| Frequency Accuracy | 0.001% |
| Output Voltage | 25Vpp |
| Dynamic Range | -100dB ~ 20dB |
- Adopts sweep frequency method to test transformer winding deformation including distortion, swell and displacement
- Applicable for 66kV and above power transformers and special transformers
- Single winding measurement completed within 1~2 minutes with fast testing speed
- Frequency accuracy up to 0.001% with high digital frequency synthesis stability
- Built-in 5000V isolation design ensures testing computer safety
- Supports linear and logarithmic sweep modes with adjustable sweep points and intervals
- Simultaneously loads up to 9 test curves and automatic deformation diagnosis
- Adopts Windows full platform compatibility for operation system
- Built-in database for convenient test data storage and management
- One-key automatic measurement with intelligent software operation
- Supports exporting Word and JPG test reports automatically
- Equipped with external lithium battery for convenient field operation
- Compact size and light weight at only 2.45kg for easy carrying
