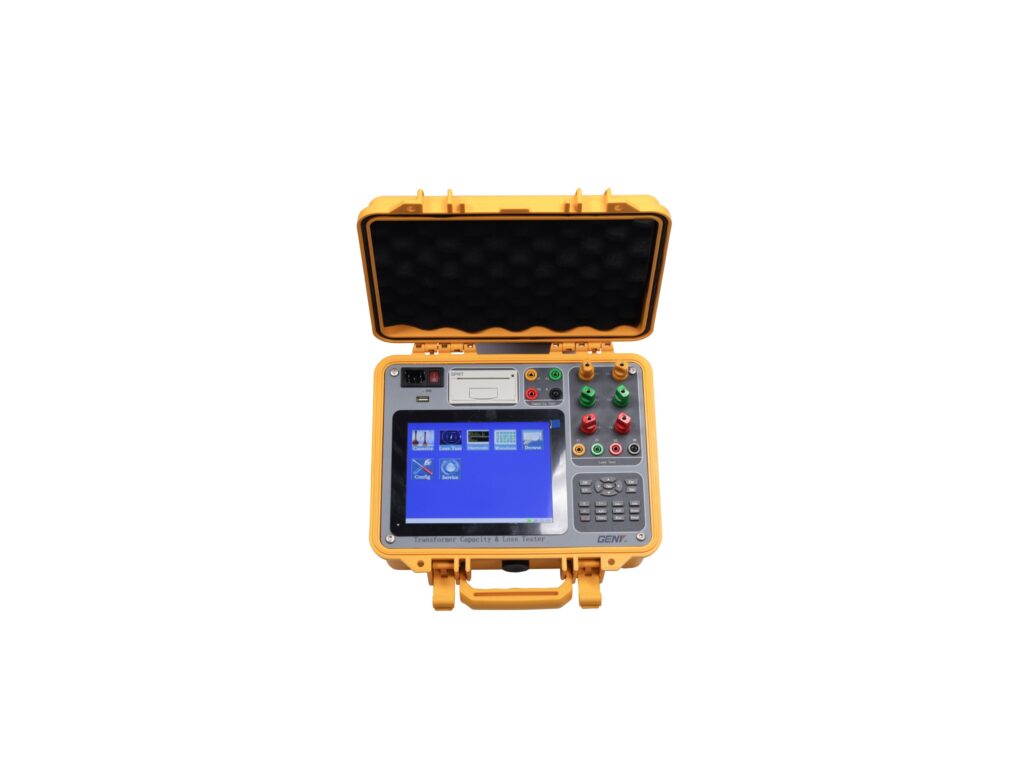

YC-98CL Transfommer Capacity & Loss Tester
YC-98CL Transformer Capacity & Loss Tester is a portable integrated instrument for on-site testing of transformer capacity, no-load loss, load loss and energy efficiency grade.
High Precision Test for Transformer Capacity and Loss
Multi Parameter Detection and Harmonic Analysis
Portable Design, Easy Operation and On-Site Printing
basic param
| Voltage Measurement Range | 0～700V |
| Current Measurement Range | 0～75A |
| Transformer Capacity Range | 10～125000kVA |
| Basic Measurement Accuracy | ±0.2% |
| Inverter Output Power | 100VA |
- Tests capacity, no-load loss and load loss for 220kV and below oil-immersed & dry-type transformers
- Supports blind measurement for transformers with unknown nameplate impedance voltage
- Judges loss code and energy efficiency grade of 10kV/20kV/35kV transformers
- Measures three-phase voltage, current and active power with high precision
- Automatically converts test results to 75℃/100℃/120℃/145℃ reference temperature
- Supports voltage, current, waveform and frequency correction under non-rated conditions
- Built-in 3~51st harmonic measurement and harmonic histogram display
- 8-inch large color LCD with full Chinese menu and touch operation
- Built-in high-speed thermal printer for on-site report output
- Stores up to 500 groups of test data with power-off memory function
- Monitors battery level, ambient temperature and humidity in real time
- Adopts integrated three-phase inverter power supply with stable output
- Lightweight portable design with waterproof, shockproof housing
