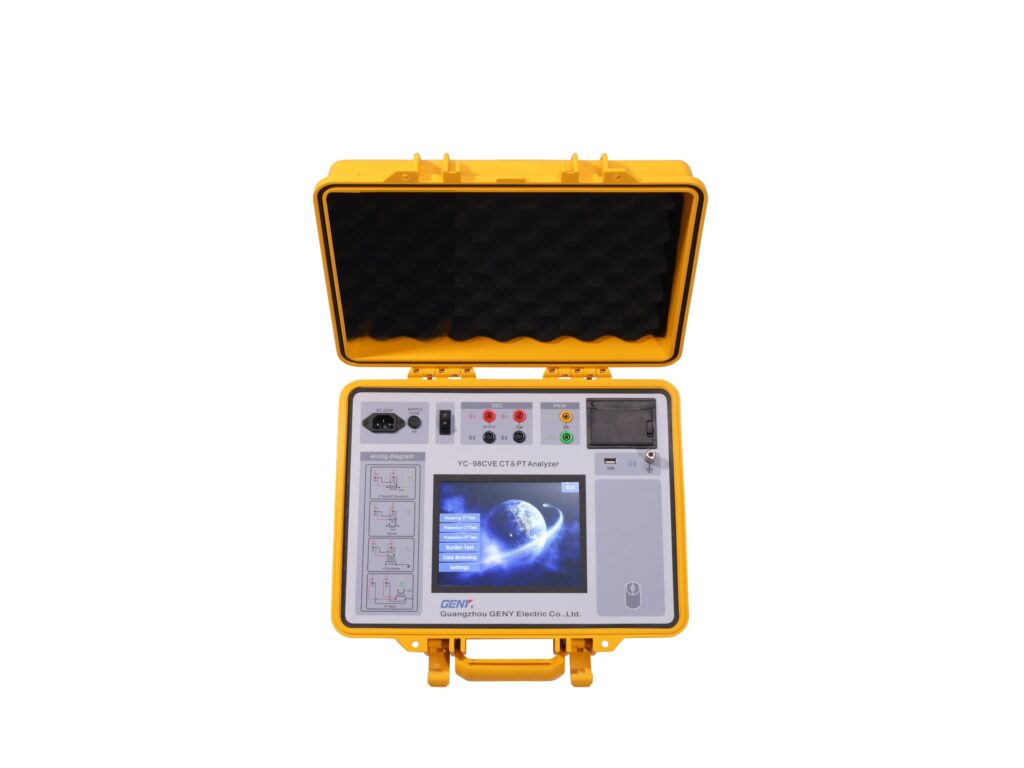

YC-98CVE CT/PT Analyzer
YC-98CVE CT/PT Analyzer is a multifunctional integrated tester designed for comprehensive performance testing of metering and protective current and voltage transformers.
High Precision for CT and PT Testing
Full Parameter Measurement and Curve Generation
Simple Wiring And Field Operation with Data Storage and Printing
basic param
| Ratio Measurement Accuracy | ±0.05% / ±0.2% |
| Excitation Output Voltage | 0~10kV |
| Frequency Range | 0.4Hz ~ 50Hz DC Resistance Accuracy: ±1% / ±3% |
| Secondary Burden Accuracy | ±2% |
- Integrated design for metering and protective CT & PT comprehensive testing
- Supports CT/PT ratio, polarity, DC resistance and excitation characteristic test
- Automatic generate 5% and 10% error curves for protective current transformers
- Meets standard test of 1%~120% ratio error and phase error for metering CT
- Adopts variable frequency technology with max 10kV equivalent test voltage
- One-click automatic testing with simple wiring and full process control
- 800*600 large color LCD screen with intuitive operation interface
- Built-in storage supports 1000 groups of test data
- Supports on-site printing and data querying
- Compatible with 5P, 10P and metrology class transformers
- Dual operation via touch screen and external mouse
- Accurate measurement of CT and PT secondary actual burden
