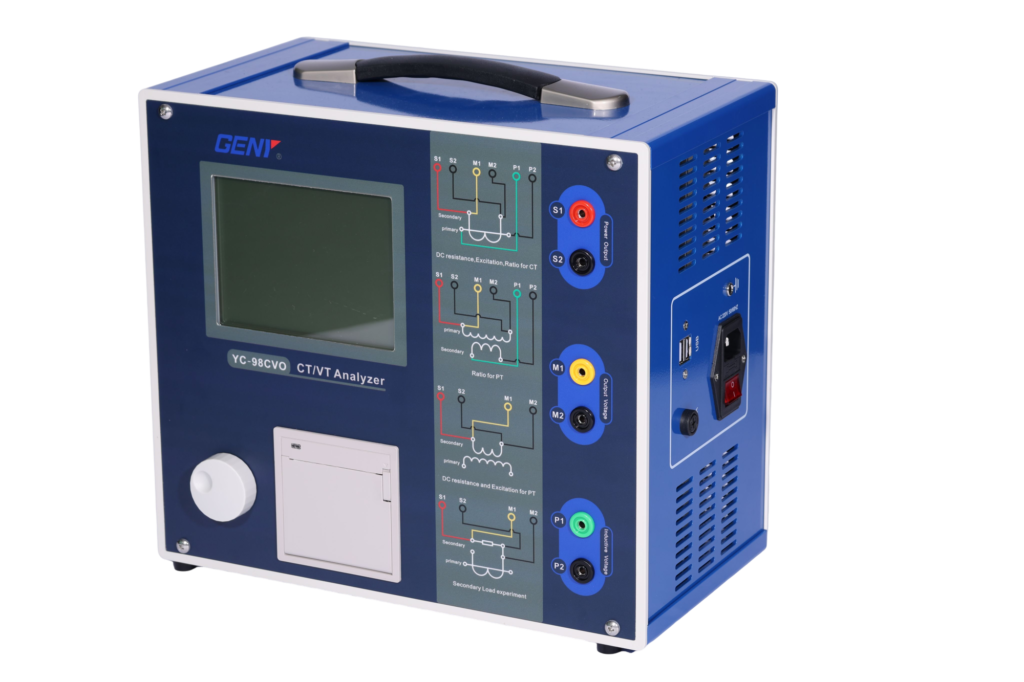

YC-98CVO CT/VT Analyzer
YC-98CVO CT/VT Analyzer is an all-in-one portable tester for comprehensive performance testing of current and voltage transformers with automatic curve calculation and report generation.
High Precision for CT/VT Testing
Full Parameter Measurement and Curve Generation
Compact Portable, User Friendly and Data Printing Supported
basic param
| Ratio Measurement Range | 1 ~ 40000 |
| Ratio Measurement Accuracy | ±0.2% |
| Phase Measurement Accuracy | ±5min |
| Secondary Resistance Range | 0 ~ 300Ω |
| Output Voltage & Current | 0~180V, 0~12Arms |
- Integrated tester for both current transformer and voltage transformer comprehensive testing
- Supports CT/VT excitation characteristic, ratio, polarity and secondary resistance measurement
- Calculates 5% / 10% error curve, saturation inductance and remanence coefficient automatically
- Provides parameters such as ALF, FS, Ts, Kssc for protection class transformers
- Adopts low frequency testing technology up to 45kV knee point voltage
- One-key automatic test with same wiring for most CT items
- Built-in thermal printer for on-site test report output
- Large LCD display with intuitive full Chinese operation interface
- Internal storage supports up to 2000 groups of test data, power-off protection
- Compatible with P/TPY/PR/PX/metrology class transformers
- Comes with PC software for data analysis and Word report generation
- Lightweight portable design with total weight less than 9kg
- Complete protection with reliable grounding and anti-interference performance
